Choosing between hydraulic and rotary marine steering controls for your outboard comes down to how much steering effort you want at the wheel and how much cable or hose reach your boat layout needs. The 20FT hydraulic kit is built around a low-friction helm and balanced cylinder, while the 12FT rotary kit uses a straightforward cable-and-wheel design. This head-to-head compares the two kits so you can decide which one belongs on your boat.
Quick verdict
If your outboard is up to 150HP and you want hydraulic assist with a direct replacement fitment and 20-foot hoses, the 20FT Boat Hydraulic Steering System Kit is the one to choose. If you prefer a simpler mechanical steering setup with a 12-foot cable and a 12.4-inch wheel, the 12 Feet Boat Rotary Steering System Outboard Kit is the more compact option.
Comparison at a glance
| Product | Listed price | Price bar | Standout spec |
|---|---|---|---|
| 20FT Boat Hydraulic Steering System Kit (HK4200A-3/HA4643) | USD 330.99 | 150HP max, 20ft hoses, 118CC cylinder | |
| 12 Feet Boat Rotary Steering System Outboard Kit (SS13712) | USD 84.65 | 12ft cable, 12.4-inch wheel, 3/4-inch shaft |
Key differences to weigh
- Steering type: The hydraulic kit combines a helm with a balanced cylinder and two 20ft hoses; the rotary kit uses a 12ft steering cable, swivel helmet, and 90-degree bezel kit.
- Fitment: The hydraulic kit is listed as a direct replacement with application up to 150HP; the rotary kit is listed for waterborne vehicles.
- Included hardware: The hydraulic kit includes hoses and fill tubes but not hydraulic oil; the rotary kit includes the steering cable, wheel, bezel kit, and hardware.
Where each product wins
The hydraulic kit wins for outboards up to 150HP, direct replacement fitment, a low-friction helm, 20-foot hoses, a listed max pressure of 6.9Mpa (1000psi), and a 118CC cylinder volume. It also lists a 2-year manufacturer warranty.
The rotary kit wins for its lower listed price, compact 12-foot cable, 12.4-inch wheel, 3/4-inch tapered shaft, 90-degree bezel kit, iron and plastic construction, and Country of Origin of the United States.
Product notes

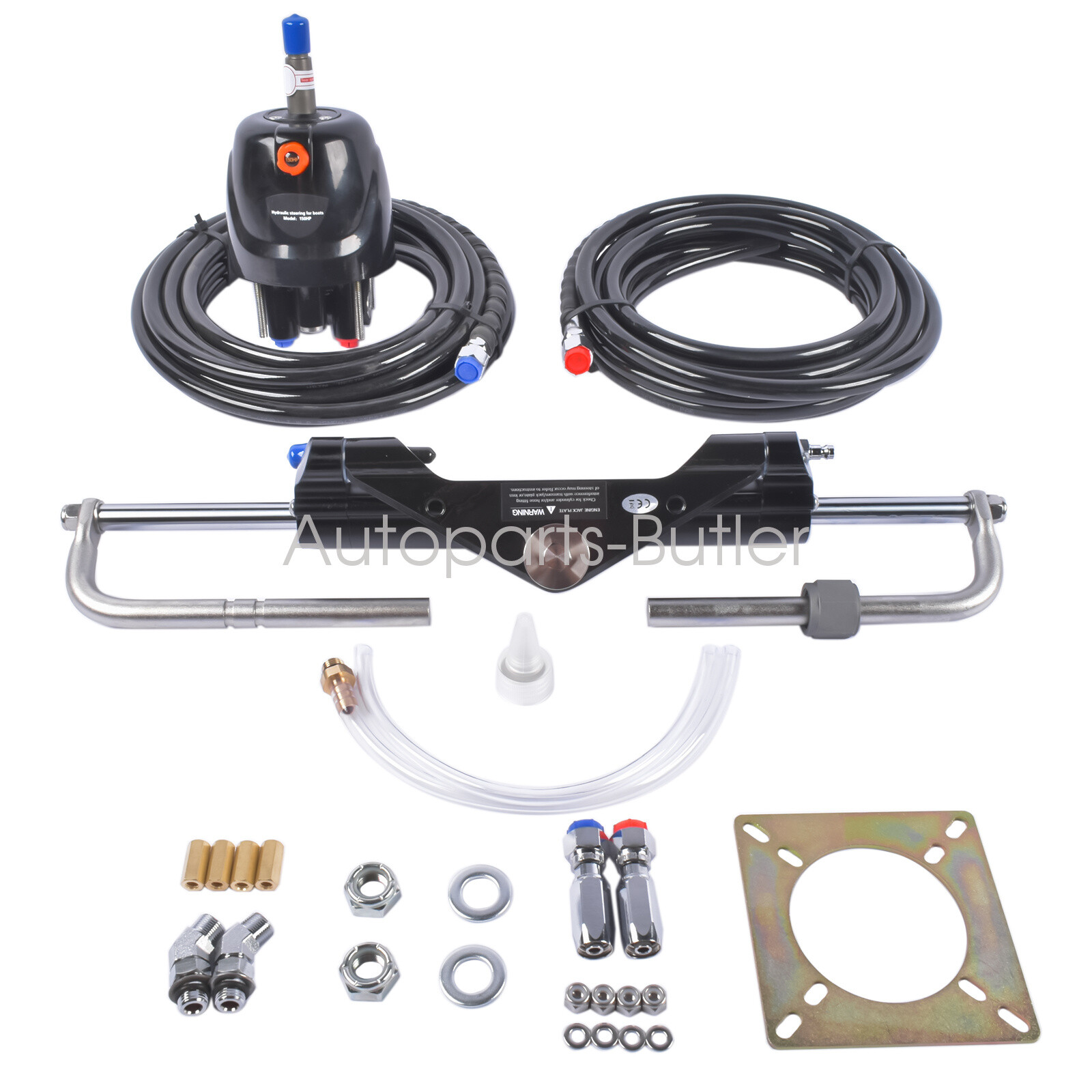

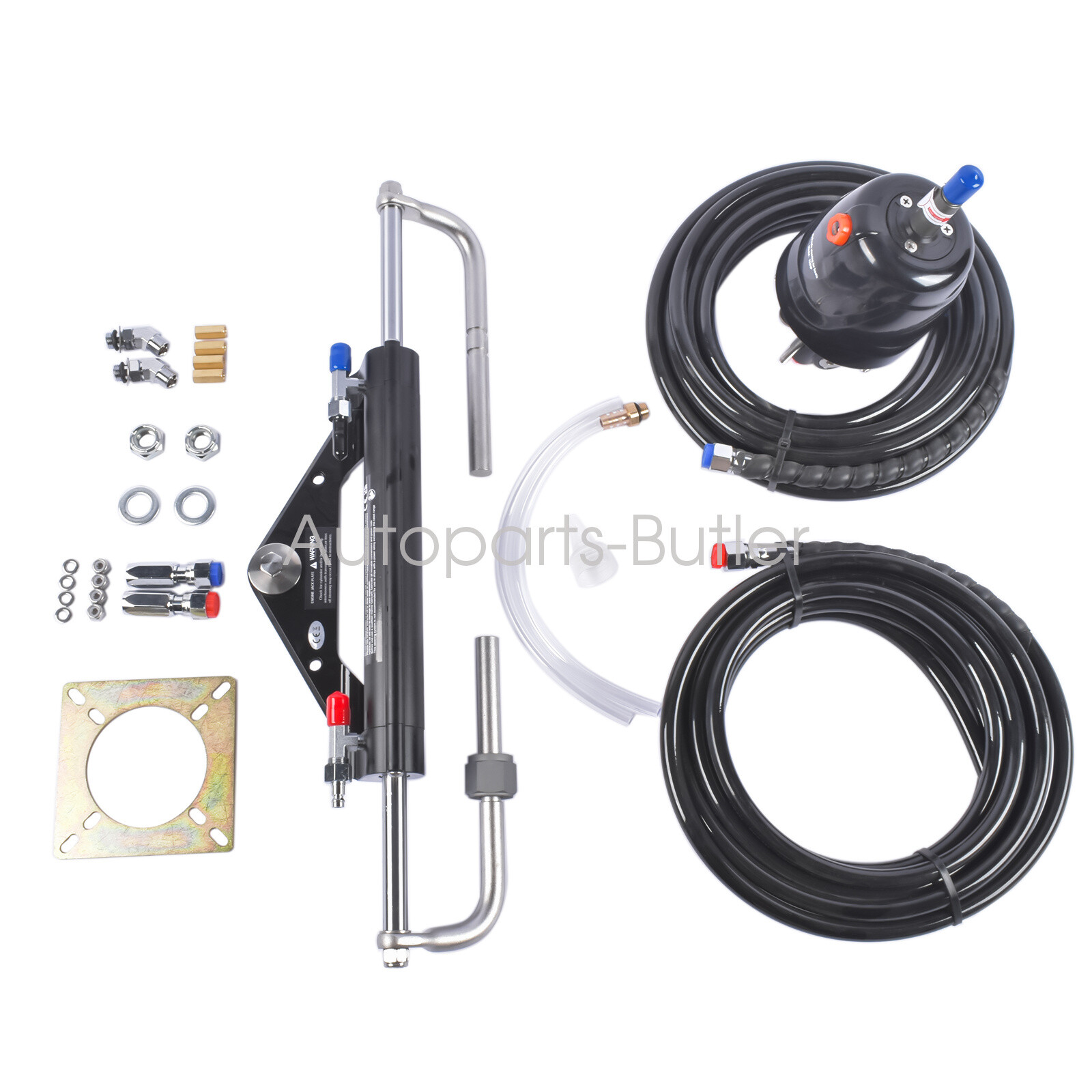

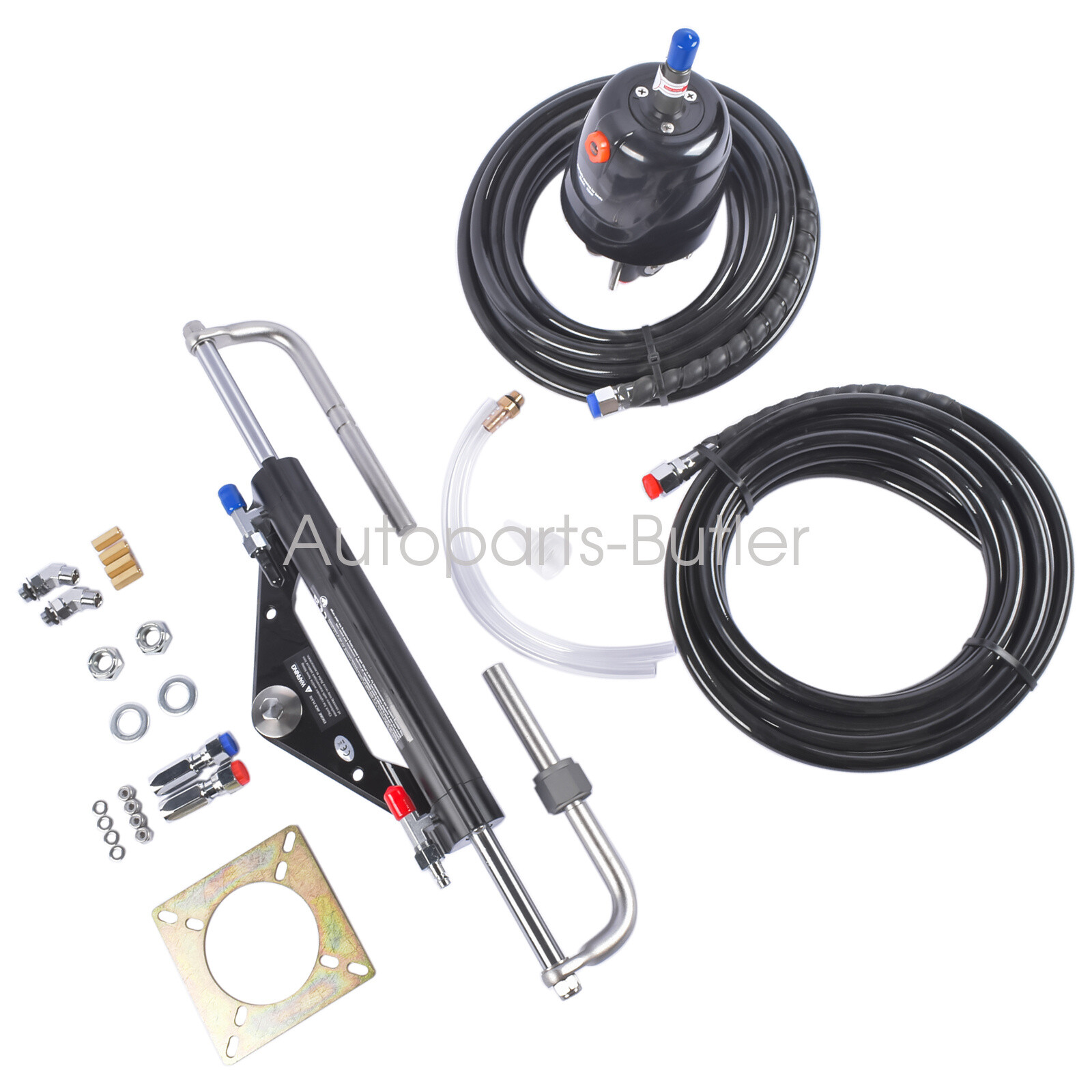

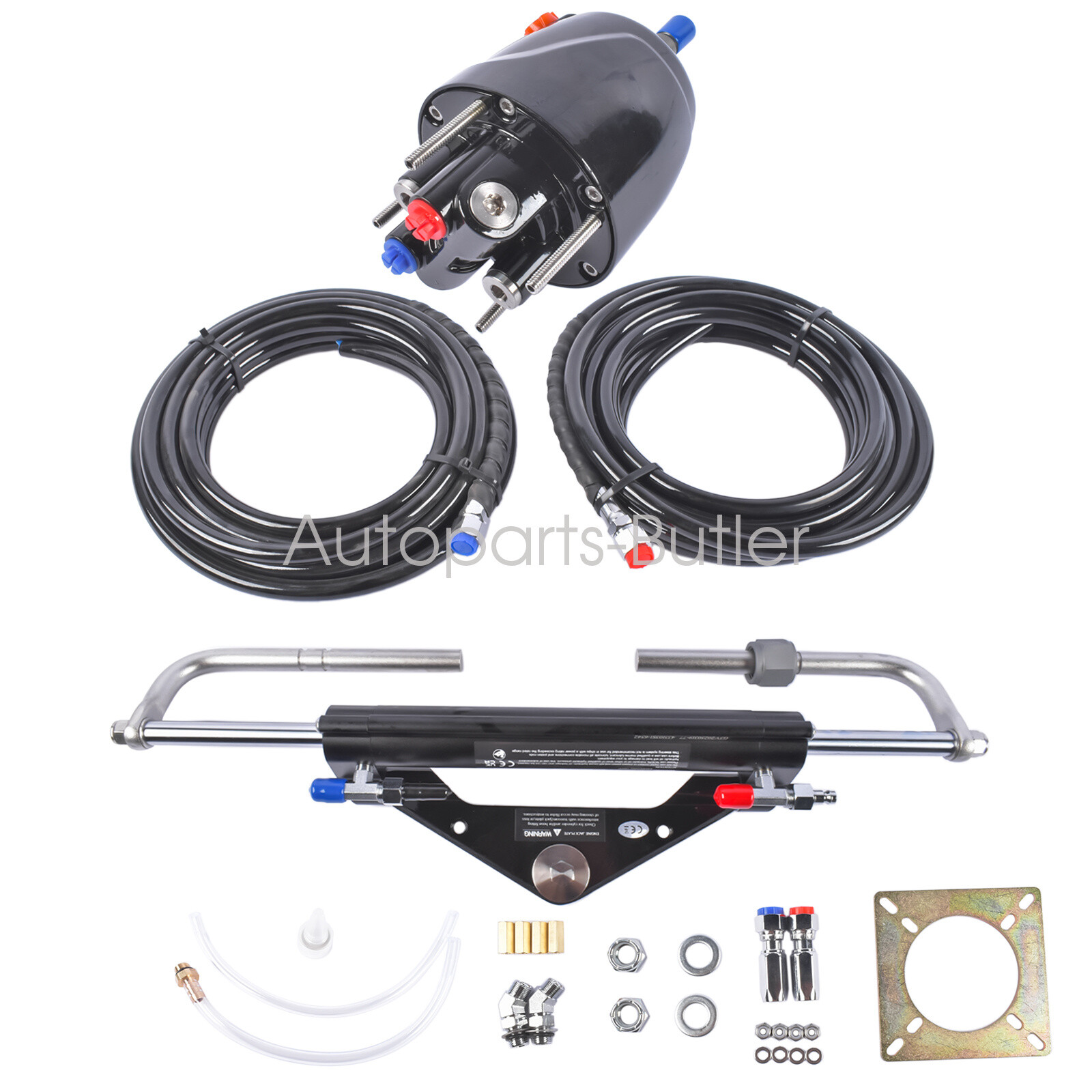

20FT Boat Hydraulic Steering System Kit
The hydraulic kit is built for outboards up to 150HP and carries a direct replacement fitment in the listing. Its low-friction helm and balanced cylinder are designed for smooth handling, and the kit includes two 20ft hoses and fill tubes. The listed max pressure is 6.9Mpa (1000psi), and the cylinder volume is 118CC. The listing also includes a 2-year manufacturer warranty. The main limitation to keep in mind is that hydraulic oil is not included, so you need to add that separately. If your boat needs a longer hose run, the 20ft hoses give you more reach than the rotary kit's 12ft cable.
12 Feet Boat Rotary Steering System Outboard Kit
The rotary kit is listed as a waterborne-vehicle steering setup with a 12ft steering cable, a standard 3/4-inch tapered shaft, a 12.4-inch steering wheel, a 90-degree bezel kit, and hardware. Its iron and plastic construction suits a compact mechanical layout. The listing also gives the Country of Origin as the United States. The main limitation is the 12ft cable: it is shorter than the hydraulic kit's 20ft hoses, so it fits a more compact steering run. If you want a no-frills mechanical rotary system and don't need hydraulic assist, this kit offers that at a lower listed price.
Final choice by use case
If your outboard is up to 150HP and you want a hydraulic system with 20-foot hoses and direct replacement fitment, choose the 20FT Boat Hydraulic Steering System Kit at USD 330.99. If you want a compact mechanical rotary setup with a 12-foot cable and 12.4-inch wheel, choose the 12 Feet Boat Rotary Steering System Outboard Kit at USD 84.65.
